iLED PRO
- Flexible videoscope system

The iLED PRO System is a complete Video Inspection System for all kind of infield inspections.

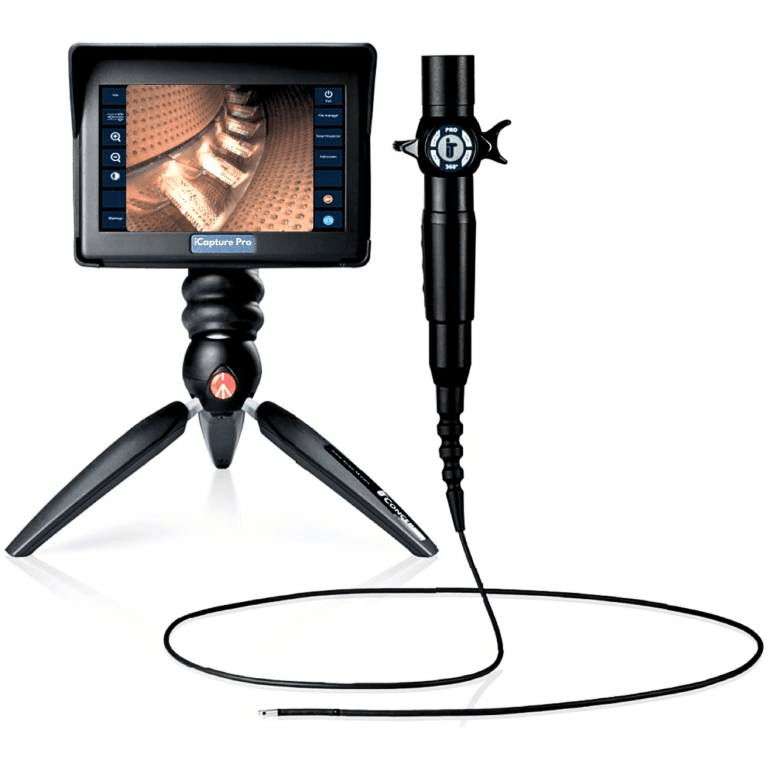

With the integral High Power LED Light Source and the iCAPTURE 7” Touch-Monitor it establishes a complete and easy to handle Video Inspection System.

With diameters of 4.0 mm, 6.0 mm or 8.0 mm and lengths from 1.5 m to 7.5 m the iLED PRO System leaves nothing to be desired.

The iLED PRO System is a Video Kit which includes the iLED PRO Probe specified by articulation, diameter and working length of the following list and all necessary basic accessories, as one battery and one Objective (except for 4 mm), Charger and Neck-Holder. It comes in Video Pro System Case (up to 4 m length, IATA standard) or iRis Caseplus (from 5m length, non IATA).

TECHNICAL SPECIFICATIONS

Operating unit

Display size: 7.0″
Display resolution: 1280 x 800 pixel
Operating system: EIOS (Endoscopic Imaging Operating System)
User interface: USB
Power supply, primary: Rechargeable Li-ion battery
Power supply, secondary: 12 V adapter (optional accessories)

Documentation

Video format: MPEG4 (.avi)
Image format: BMP (.bmp), JPEG (.jpg), PNG (.png)
Storage: intern 16GB / USB (16GB in delivery)

Image editing

Method: Image marking / analysis

Camera

Sensor: High resolution Super HAD CCD image sensor

Probe

4.0

6.0

8.0
Diameter: 4.0 mm 6.0 mm 8.0 mm
Working length: 1.0 – 4.0 m 1.0 – 7.5 m 1.0 – 7.5 m
Articulation: 4-way 4-way 4-way
Integrated objective lens: Yes No No
Side view tip adapter: No Yes Yes
Side view option: Yes Yes Yes

Interchangeable Objective Lenses & SVTA

PROBE DOV FOV DOF CODE
4.0 mm 0° 60° 7 – 50 mm
4.0 mm 0° 60° 4 – 10 mm SD
4.0 mm 0° 90° 15 mm – ∞
4.0 mm 0° 90° 10 – 30 mm SD
4.0 mm** 90° 60° 5 – 45 mm SVTA
6.0 mm 0° 60° 5 mm – ∞ BLACK
6.0 mm 0° 60° 8 mm – ∞ YELLOW-B
6.0 mm 0° 90° 5 mm – ∞ RED
6.0 mm 0° 120° 3 mm – ∞ GREEN
6.0 mm** 90° 60° 5 – 15 mm SVTA-CF
6.0 mm** 90° 60° 15 – 50 mm SVTA-FF
8.0 mm 0° 28° 25 mm – ∞ BLUE
8.0 mm 0° 60° 5 mm – ∞ BLACK
8.0 mm 0° 60° 8 mm – ∞ YELLOW-B
8.0 mm 0° 90° 8 mm – ∞ SILVER-B
8.0 mm 0° 90° 5 mm – ∞ RED
8.0 mm** 90° 60° 5 mm – ∞ SVTA



DOV = Direction of View
FOV = Field of View
DOF = Depth of Focus
SVTA = Side View Tip Adapter		 CF = Close Focus
FF = Far Focus
B = Bright objective lens
** = Compatible to FOV 60°

Construction

Ergonomics: rotatable + swiveling
System weight: 1.28 kg
Dimensions: see below
Housing: Rugged PU with rubber shock protection

Operating environment

Tip operating temperature: -13° F to 176° F (-25° C to +80° C) / 284° F (140° C) less than 5 Minutes
System operating temperature: -13° F to 115° F (-25° C to +46° C)
Storage temperature: -13° F to 140° F (-25° C to +60° C)
Relative humidity: 95% less than – non condensing

FEATURES

  • 7 inch Touch-Display
    • The 7 inch touch display provides an optimal view of the live image, image and video recordings and is also the control platform for the intuitive software.
  • Durability
    • Probe is heat resistant up to 140° C for a duration of max. 5 minutes.
  • Swiveling monitor
    • The monitor can be adjusted fluidly and fixed in almost any position by the ball head.
  • Shockproof
    • Our devices with this symbol are tested. For free fall from a common height of approx. 1 m, e.g. during an inspection from hip height.
  • Splash-Proof
    • Protected from limited dust ingress. Protected from water spray from any direction.
  • WiFi Live Stream
    • Using the QR code, you can, for example, switch on the inspection directly with your smartphone and observe it in live mode. You can also access the stored images and video recordings.
