iRis XT
iRis XT
- Flexible videoscope system

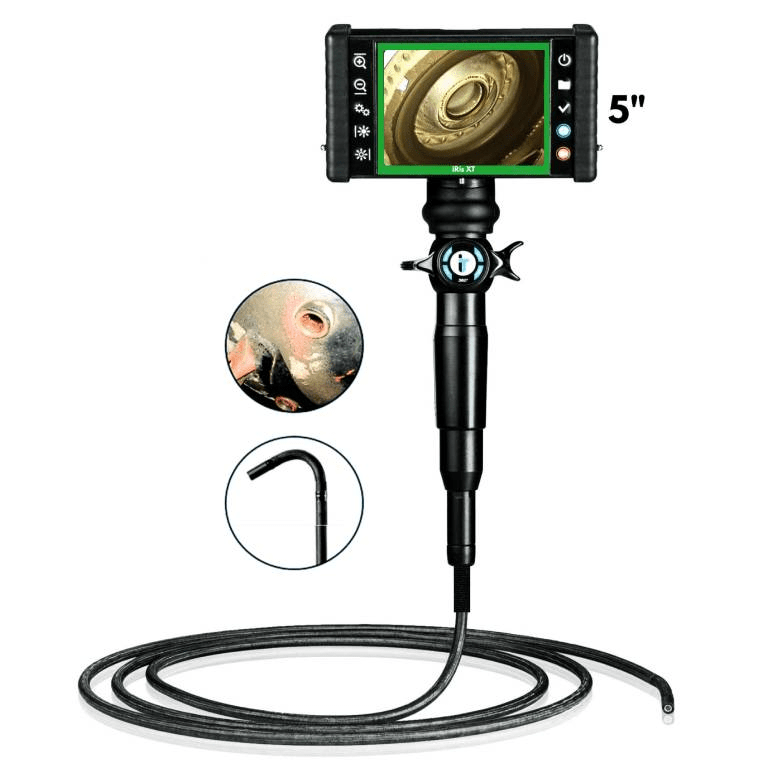

Extremely compact dimensions: minimal weight and optimal handling are the outstanding attributes of the iRis XT Videoscope System by JSC IT Concepts.
Inspections in remote or inaccessible areas of the harsh environments now are feasible in no time and with an undreamed easiness. Only little efforts and iRis XT is ready for use within seconds. You can move the distal end to any desired position fast, easy and precisely, thanks to the approved tactile 4-way articulation of up to 180°. Adjustable and interchangeable objectives with different fields of view, f-stops and working distances as well as the high brightness of the LED light source guarantee that you don’t miss any detail on the 5” high resolution TFT Touch Display, running with real time operating system, with on screen menu Direct action Keys/ function Keys/ Arrows Keys. The integrated, changeable and rechargeable high power batteries assure 2 hours of operating time. The balance
d handle – designed for real -handed operation – allows long and effortless working. With diameters of 4.0 mm and 6.0 mm lengths from 1.5mtr to 7.5mtr the
iRis XT leaves nothing to be desired.
TECHNICAL SPECIFICATIONS
| Display size: | 5.0” (12.7CM) TFT | |
| Display resolution: | VGA (640 x 480 pixel) | |
| Operating system: | Realtime operating system, with on-screen menu Direct action keys / function keys / arrow keys | |
| Language: | English | |
| Power supply, primary: | Rechargeable Li-ion battery | |
| Power supply, secondary: | 12 V adapter (optional accessories) |
| Video format: | MPEG4 (.avi)(with time and date stamp) |
| Image format: | JPG / BMP (.bmp) |
| Storage: | Internal Memory (16GB) |
| Data Transfer: | USB (32GB) |
| Functions: | 5 X digital zoom |
| Image sensor: | AIT advance image sensor | |
| Camera control: | White balance |
| Type: | High-power LED | |
| Illumination control: | Adjustable | |
| Average lamp lifetime: | approx. 5000h |
4.0 | 6.0 | |||
| Diameter: | 4.0 mm | 6.0 mm | ||
| Working length: | 1.5-3.0mtr | 1.5-7.5mtr | ||
| Articulation (bending neck): | 4way/360° | 4way/360° | ||
| Integrated objective: | 90° FOV | 90° FOV | ||
| Depth of View: | 0° | 0° | ||
| Braid: | Multi-layer tungsten braid on PU jacket | Multi-layer tungsten braid on PU jacket | ||
| Tip operating temperature: | -13°F to 176°F (-25°C to +80°C) | |
| Weight: | 1.28Kg | |
| Dimensions: | 180mm x 105mm x 45mm | |
| Housing: | Rugged PU, with integrated rubber shock caps | |
| System operating temperature: | -13°F to 122°F (-25°C to +50°C) | |
| Storage temperature: | -13°F to 140°F (-25°C to +60°C) | |
| Relative humidity: | 95% less than – non considering | |
| Waterproof: | Probe and distal End up to 1 bar – 10.2m H2O | |
| Resistance: | Probe and distal end to oils and saline (5%) |
FEATURES
- 5.0” (12.7CM) TFT Colour
- The 5inch display provides an optimal view of the live image, image and video recordings and is also the control platform for the intuitive software.
- 360° rotatable monitor
- The unit can be locked in place by a rotating mechanism located under the monitor.
- Durability
- Probe is heat resistant up to 140° C for a duration of max. 5 minutes.
- Compact-System
- Monitor, light source, handle and video probe in one device. The video endoscope is ready for inspection in seconds.
