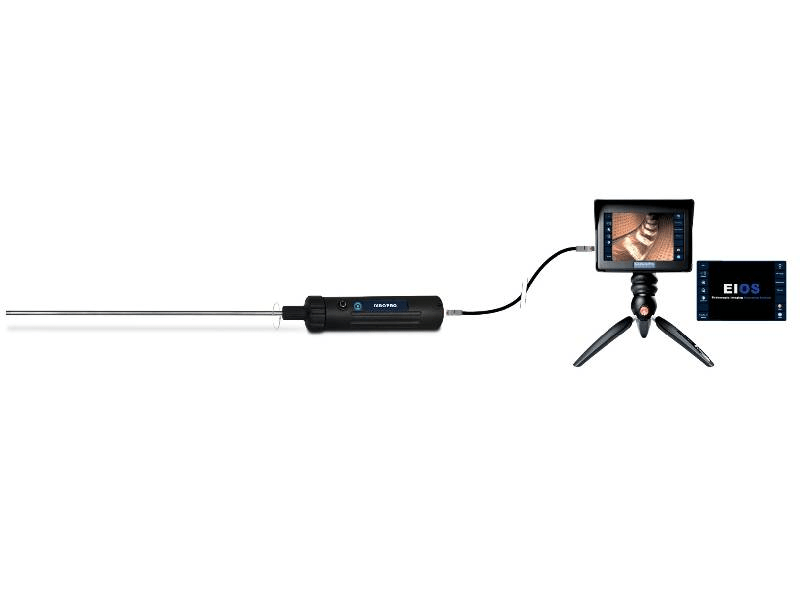

IXBO PRO
iXBO PRO
- 2 High Power LEDs. Controllable via the IT Concepts software EIOS
- 2 Standard versions and probe lengths on request
TECHNICAL SPECIFICATIONS
| Video Interface: | 8 PIN > iCapture PRO, HDMI PRO with monitor/touch display, HDMI ZOOM with monitor/touch display |
|
| Power supply: | 5V via iCapture PRO, HDMI PRO, HDMI ZOOM |
| Type: | 2-fold high-performance LED on the TIP | |
| Light setting: | 0 – 100% via software | |
| Lifespan: | approx. 20,000h |
| Ergonomics: | ± 180° rotatable shaft or rotatable tube | |
| Weight: | 180g (+/- depending on tube length) | |
| Dimensions handle: | Length 160mm | Diameter 40mm | |
| Working temperature probe: | (-20°C) – (+60°C) | |
| Working temperature system: | (-20°C) – (+60°C) | |
| storage temperature: | (-25°C) – (+60°C) | |
| Humidity: | 95% max – non-condensing | |
| Resistance: | Handle material PA1102, excellent resistance to chemicals, especially hydrocarbons, aldehydes, ketones, mineral bases and salts, alcohols, fuels, detergents and oils/greases |
|
| Environmental aspect: | PA 1102 is made from renewable raw materials! | |
| Protection classes device: | IP53 |
| Camera sensor: | AIT Advanced Image Sensor | |
| Resolution: | 800×800 pixels |
6.0MM |
6.0MM |
6.0MM |
||||
| default | default | |||||
| Probe Lengths: | 260mm | 360mm | More on request | |||
| Material: | stainless steel | stainless steel | stainless steel | |||
| line of sight: | 0° | 90° | 0° | 90° | 0° | 90° |
FEATURES
- 0° line of sight
- 90° line of sight
- EIOS
- Rotatable probe
- portable
- Stationary
