XLED PRO System
XLED PRO
- Flexible videoscope system
The XLED PRO Video System is a small and highly portable Inspection System for all kind of infield inspections.
The system contains the 2.4 mm, 3.0 mm, 4.0 mm or 6.0 mm XLED PRO Videoscope with 2-way or 4-way Articulation combining in a unique way a high image quality with an attractive price.
IT Concepts offers different versions of the XLED PRO Probe:
- with 2,4mm and 3mm you have to decide between 0° DOV (direction of view) or one 90° dedicated 90° DOV with a 90° FOV (field of view)
- with diameters of 4.0 mm or 6.0mm and lengths from 1.5.m to 7.5 m the iLED System leaves nothing to be desired.
.

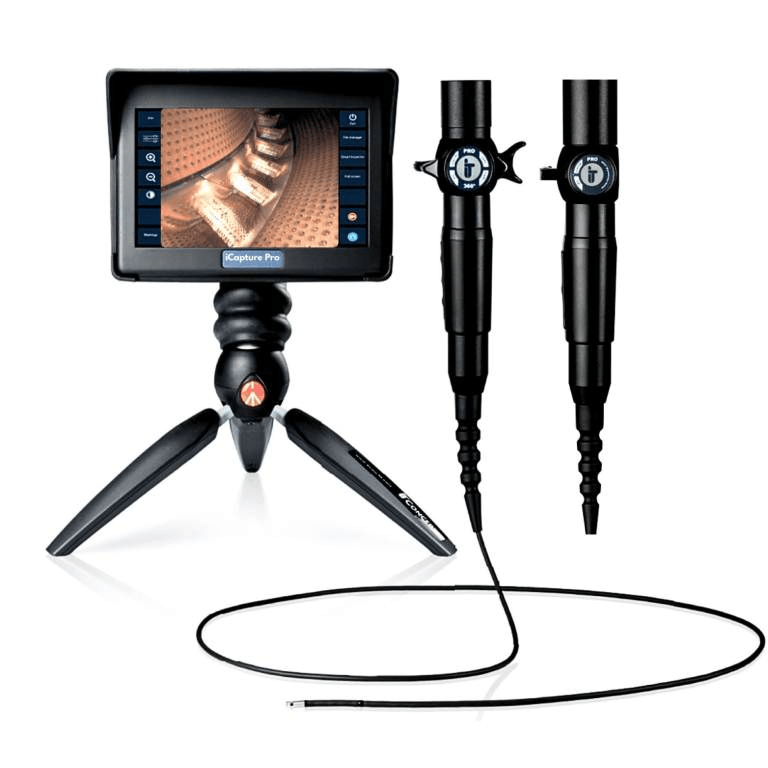

With the new High Power Fiberoptic-LED Hybrid-illumination and the iCAPTURE 7” Touch- Monitor it establishes a complete and easy to handle Video Inspection System. The XLED PRO Kit comes with the iCAPTURE PRO 7” Touch- Monitor or could be connected to any HDMI monitor with our HDMI ZOOM and HDMI PRO devices.It comes in Video Pro System Case (up to 4m length, IATA standard) or iRis Caseplus (from 5 m length, non IATA).
Note that the optional i4 Side View Tip Adapter only fits on iRis DVR, iLED and iSeries 4 mm with 60° Objective!
TECHNICAL SPECIFICATIONS
| Display size: | 7.0″ | |
| Display resolution: | 1024 x 600 Pixel | |
| Operating system: | EIOS (Endoscopic Imaging Operating System) | |
| User interface: | USB | |
| Power supply, primary: | Rechargeable Li-ion battery | |
| Power supply, secondary: | 12 V adapter (optional accessories) |
| Video format: | MPEG4 (.avi) | |
| Image format: | BMP (.bmp), JPEG (.jpg), PNG (.png) | |
| Storage: | intern 16GB / USB (16GB in delivery) |
| Method: | Image marking / analysis |
| Sensor: | AIT Advanced Image Sensor |
4.0 |
6.0 |
|||
| Diameter: | 4.0 mm | 6.0 mm | ||
| Working length: | 1.5 – 4.0 m | 1.5 – 7.5 m | ||
| Direction of view: | 0° / 90° | 0° / 90° | ||
| Articulation: | 4-way | 4-way | ||
| Integrated objective lens: | Yes | Yes |
| Ergonomics: | rotatable + swiveling | |
| System weight: | 1.28 kg | |
| Dimensions: | see below | |
| Housing: | Rugged PU with rubber shock protection |
| Tip operating temperature: | -13° F to 176° F (-25° C to +80° C) / 284° F (140° C) less than 5 Minutes | |
| System operating temperature: | -13° F to 115° F (-25° C to +46° C) | |
| Storage temperature: | -13° F to 140° F (-25° C to +60° C) | |
| Relative humidity: | 95% less than – non condensing |
FEATURES
- 7 inch Touch-Display
- The 7 inch touch display provides an optimal view of the live image, image and video recordings and is also the control platform for the intuitive software.
- Durability
- Probe is heat resistant up to 140° C for a duration of max. 5 minutes.
- Swiveling monitor
- The monitor can be adjusted fluidly and fixed in almost any position by the ball head.
- Shockproof
- Our devices with this symbol are tested. For free fall from a common height of approx. 1 m, e.g. during an inspection from hip height.
- Splash-Proof
- Protected from limited dust ingress. Protected from water spray from any direction.
- WiFi Live Stream
- Using the QR code, you can, for example, switch on the inspection directly with your smartphone and observe it in live mode. You can also access the stored images and video recordings.
