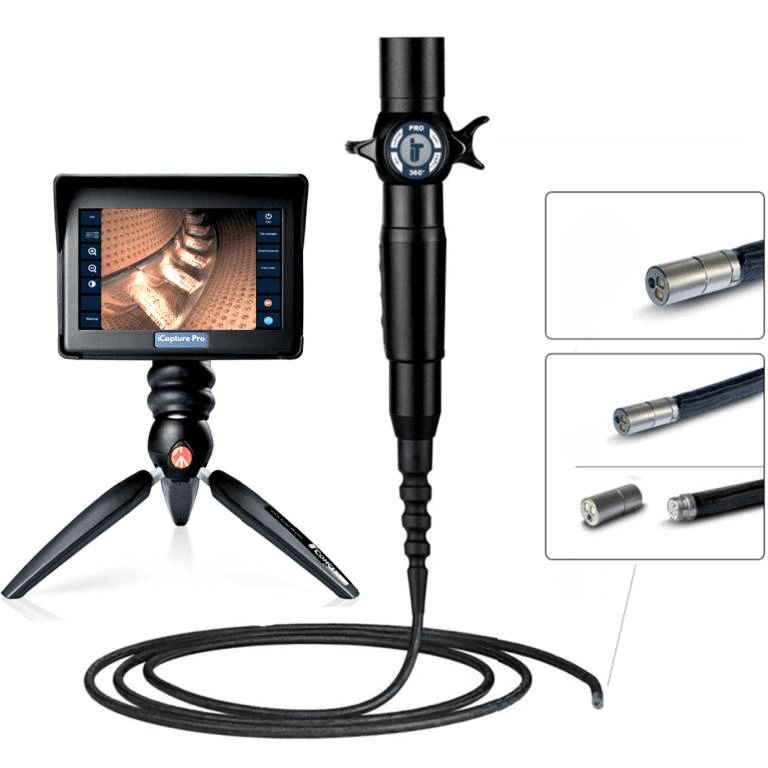

XTC PRO – Radiation Resistance Videoscope
The XTC is the world’s first videoscope with interchangeable Cam Change and Tec Tip Technology. This innovation was developed
in response to nuclear applications to visually check the drains of pools, pipes, rotating machines, valves, in contaminated
areas.
The Tec Tip Technology integrates the video signal-connector, the CCD image sensor, and the double LED-Light source into the interchangeable probe tip.
The Cam Change innovation dramatically saves repair costs and decreases downtime if the probe tip or image sensor is
damaged (radiation resistance: 10Gy/h | 200Gy/cumulative).
The interchangeable Cam-Change camera head of the XTC videoscope can immediately be replaced at your facility within
30 minutes by your own employees without any technical knowledge.
After replacing Cam Change camera head, the videoscope is fully operational again and the inspection can be taken promptly.
TECHNICAL SPECIFICATIONS
| Display Size | 7.0” with Touch |
| Display Resolution | 1280 X 800 Pixel |
| Operating System | EIOS (Endoscopic Imaging Operation System) |
| Interface | USB |
| Power Supply | Rechargeable Li-ion Battery |
| (Primary) (Backup – min. 150 mins) | |
| Power Supply | 12V AC Adapter |
| (Secondary) | |
| Storage | 25GB Internal with 32GB on USB |
| Video Format | MPEG4 (.avi) |
| Image Format | BMP (.bmp), JPEG (.jpg), PNG (.png) |
| Audio and Mic | Optional |
| Method | Grid, Line, Circle, Marker |
| Smart Inspector | Image Comparison |
| Image Share | Live Image Share (Android/IOS/Laptop) |
| Measurement | Comparative |
| Zoom | 5X |
| Brightness | Adjustable |
| Contrast | Adjustable |
| Saturation | Adjustable |
| Text Annotation | Built-in Text overlay generation |
| White Balance | Manual |
| Inversion | Normal, Horizontal, Vertical and Both |
| AEC | Adjustable |
| AGC (Gain Control) | Auto/Adjustable |
| Ergonomics | Rotatable Display Unit |
| Weight | 1.35Kg |
| Housing | Rugged PU with Rubber Shock Protection |
| Drop Test | 1Mtr. |
| System Operating | -25°C to + 50°C |
| Storage Temp. | -25°C to + 60°C |
| Relative Humidity | 95% Less than – noncondensing. |
FEATURES
The interchangeable camera head of the XTC PRO videoscope can immediately be replaced at your facility within seconds by your own employees without any deep technical knowledge. After replacing the camera head, the videoscope is fully operational again and the inspection can be taken promptly.
